How Does an SF6 Gas Insulated RMU Improve Power Distribution Reliability?

Modern electrical distribution networks require equipment that is compact, reliable, safe, and capable of operating under demanding environmental conditions. An SF6 Gas Insulated RMU (Ring Main Unit) has become a preferred solution for utilities, industrial facilities, commercial buildings, renewable energy projects, and infrastructure developments because it combines advanced insulation technology with high operational reliability.

This article explains how SF6 Gas Insulated RMUs work, why they are widely used in medium-voltage distribution systems, and how they help reduce downtime, improve safety, and lower maintenance costs. Whether you are planning a new electrical network or upgrading an existing one, understanding the benefits and considerations of SF6-insulated switchgear can help you make a more informed investment decision.

Table of Contents

• What Is an SF6 Gas Insulated RMU?
• How Does an SF6 Gas Insulated RMU Work?
• Key Advantages of SF6 Gas Insulated RMUs
• Common Applications
• SF6 RMU vs Air Insulated RMU
• How to Choose the Right RMU
• Maintenance Considerations
• Customer Pain Points and Solutions
• Frequently Asked Questions
• Conclusion

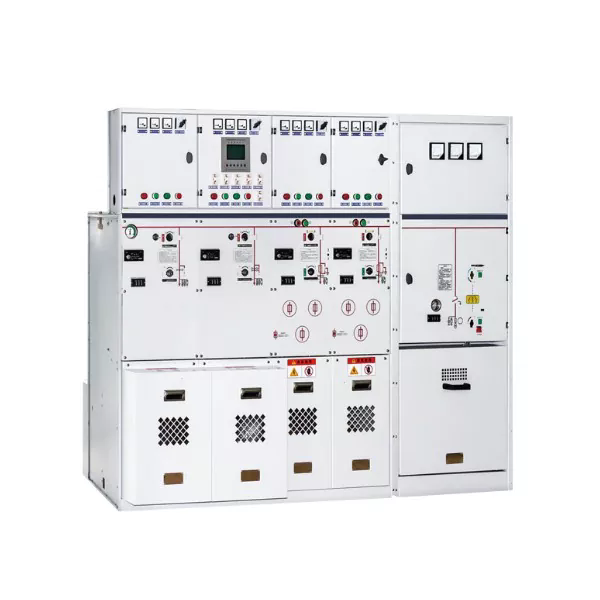

What Is an SF6 Gas Insulated RMU?

An SF6 Gas Insulated Ring Main Unit (RMU) is a medium-voltage switchgear assembly designed for power distribution networks. It utilizes sulfur hexafluoride (SF6) gas as the insulating and arc-quenching medium inside sealed compartments.

RMUs are commonly installed in ring distribution systems where uninterrupted power supply is critical. Their compact design allows them to fit into limited spaces while maintaining excellent electrical performance and operational safety.

Typical components of an SF6 Gas Insulated RMU include:

• Load break switches
• Circuit breakers
• Fuse-switch combinations
• Busbars
• Protection relays
• Cable connection compartments
• Gas-insulated sealed tanks

The sealed gas tank protects internal components from dust, moisture, pollution, salt spray, and other environmental contaminants.

How Does an SF6 Gas Insulated RMU Work?

The operating principle of an SF6 Gas Insulated RMU is based on the superior insulating properties of SF6 gas. Compared with air, SF6 provides significantly higher dielectric strength, enabling electrical components to be installed much closer together.

During normal operation, electricity flows through the incoming and outgoing feeders via insulated busbars. When switching operations occur, the load break switch or circuit breaker interrupts current flow safely.

If a fault such as a short circuit occurs, the protection system detects the abnormal condition and triggers the circuit breaker to isolate the affected section. SF6 gas effectively extinguishes the arc generated during interruption, preventing equipment damage and maintaining system stability.

Key Advantages of SF6 Gas Insulated RMUs

Organizations often select SF6 Gas Insulated RMUs because they address several operational challenges commonly encountered in medium-voltage distribution systems.

1. Compact Design
   SF6 insulation allows a much smaller footprint than conventional air-insulated equipment, making installation possible in urban substations, commercial buildings, and space-constrained industrial facilities.
2. High Reliability
   Sealed gas compartments protect critical electrical parts from environmental contamination, reducing failure rates.
3. Enhanced Safety
   Internal arc-resistant designs and enclosed live parts improve operator safety during operation and maintenance.
4. Low Maintenance Requirements
   Because internal components are protected within sealed tanks, periodic maintenance requirements are significantly reduced.
5. Long Service Life
   High-quality SF6-insulated switchgear can provide dependable performance for decades under proper operating conditions.
6. Excellent Environmental Resistance
   SF6 RMUs perform reliably in harsh climates, including:
   • High humidity regions
   • Coastal areas
   • Dusty industrial zones
   • Mining environments
   • Extreme temperature conditions

Common Applications

SF6 Gas Insulated RMUs are widely deployed across numerous industries and infrastructure sectors.

Their ability to provide continuous service while minimizing outages makes them especially valuable in mission-critical facilities.

SF6 RMU vs Air Insulated RMU

For projects where reliability, space savings, and reduced maintenance are priorities, SF6 Gas Insulated RMUs are often the preferred solution.

How to Choose the Right RMU

Selecting the appropriate SF6 Gas Insulated RMU requires evaluating several technical and operational factors.

• System voltage rating
• Rated current requirements
• Short-circuit withstand capability
• Network configuration
• Protection requirements
• Available installation space
• Environmental conditions
• Future expansion plans

Working with an experienced switchgear manufacturer helps ensure proper equipment sizing and long-term operational reliability.

Maintenance Considerations

Although SF6 Gas Insulated RMUs require relatively little maintenance, routine inspections remain important for ensuring optimal performance.

• Visual inspection of external components
• Gas pressure monitoring
• Protection relay testing
• Mechanical operation verification
• Cable termination inspection
• Periodic functional testing

Preventive maintenance programs help identify potential issues before they affect network reliability.

Customer Pain Points and How SF6 RMUs Solve Them

These benefits directly contribute to improved system availability, reduced operating expenses, and enhanced overall network performance.

Frequently Asked Questions

Q1: What voltage levels are commonly available for SF6 Gas Insulated RMUs?

Most RMUs are designed for medium-voltage applications ranging from 12kV to 36kV, depending on system requirements.

Q2: Are SF6 Gas Insulated RMUs suitable for outdoor installations?

Yes. Many models are specifically engineered for outdoor operation and can withstand challenging environmental conditions.

Q3: How long does an SF6 RMU typically last?

With proper installation and maintenance, service life can often exceed 25 to 30 years.

Q4: Why are SF6 RMUs popular in urban power distribution networks?

Their compact footprint allows utilities to maximize space utilization while maintaining high reliability.

Q5: Can SF6 RMUs support renewable energy projects?

Absolutely. They are widely used in solar and wind energy installations where dependable medium-voltage switching and protection are required.

Conclusion

SF6 Gas Insulated RMUs play a critical role in modern medium-voltage power distribution systems. Their compact structure, excellent insulation performance, high reliability, reduced maintenance requirements, and superior operational safety make them an ideal choice for utilities, industrial facilities, commercial buildings, and renewable energy projects.

As electrical networks continue to demand greater efficiency and uptime, investing in high-quality SF6 Gas Insulated RMU solutions can significantly improve power distribution performance while reducing long-term operational costs.

Junray Electrical specializes in advanced medium-voltage switchgear and power distribution solutions designed to meet the needs of modern electrical infrastructure. If you are looking for reliable SF6 Gas Insulated RMUs, expert technical support, and customized solutions for your project, contact us today to discuss your requirements and discover how Junray Electrical can help optimize your power distribution system.
