Abstract: Self-healing shunt capacitors are essential components in modern electrical systems, providing efficient energy management, voltage stabilization, and improved system reliability. This article explores their functionality, benefits, applications, maintenance tips, and common concerns to help engineers, facility managers, and decision-makers select the right solution for their electrical infrastructure. With products from Geyue Electric, users can experience advanced performance and reduced operational downtime.
Table of Contents
- Introduction to Self-healing Shunt Capacitors
- Working Principle
- Key Advantages
- Applications in Electrical Systems
- Tips for Selecting the Right Capacitor
- Maintenance and Troubleshooting
- Frequently Asked Questions

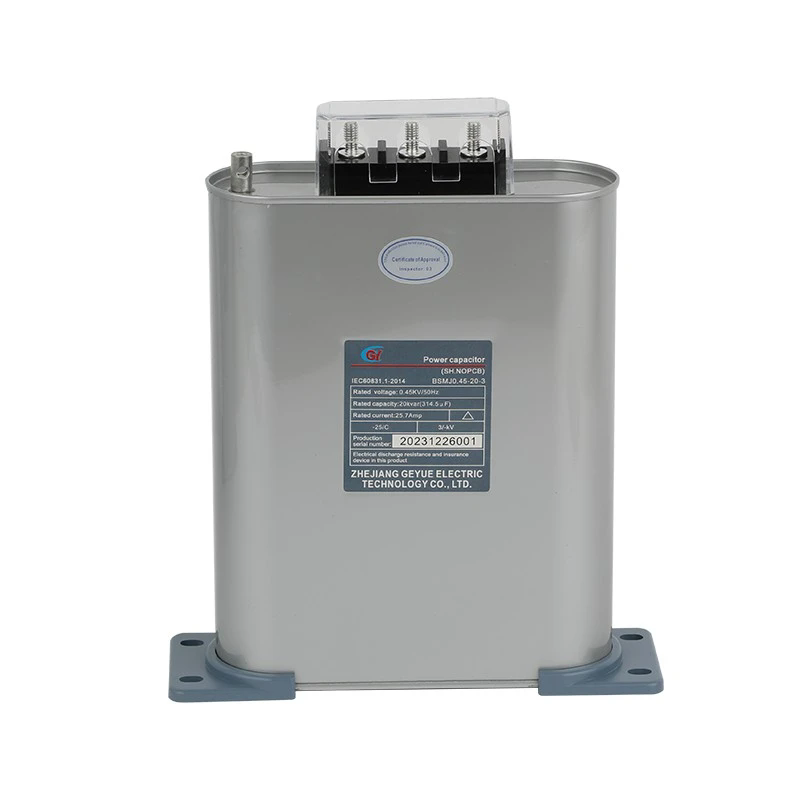

Introduction to Self-healing Shunt Capacitors
Self-healing shunt capacitors are specialized electrical components designed to enhance power quality and system efficiency. Unlike traditional capacitors, they feature an advanced dielectric material capable of automatically isolating small internal faults, effectively “self-healing” to prevent catastrophic failure.
Manufacturers like Geyue Electric produce these capacitors in various ratings and configurations, suitable for industrial, commercial, and utility applications.
Working Principle
At the heart of a self-healing shunt capacitor is a metallized film dielectric. When a local dielectric breakdown occurs due to overvoltage or transient spikes, the capacitor automatically isolates the damaged area by vaporizing the metal around the fault. This prevents short circuits and allows the capacitor to continue operating efficiently.
- Voltage Rating: Determines operational limits and safety margins.
- Capacitance Tolerance: Ensures precise energy compensation.
- Self-healing Layer: Metallized film enables fault isolation.
This mechanism dramatically reduces downtime and maintenance costs in high-demand electrical networks.
Key Advantages of Self-healing Shunt Capacitors
| Advantage | Benefit |
|---|---|
| Self-healing Capability | Automatically isolates small faults to prevent failure. |
| Improved Voltage Stability | Reduces fluctuations, protecting sensitive equipment. |
| Reduced Maintenance | Minimizes replacement frequency and operational downtime. |
| Compact Design | Optimizes space usage in electrical panels. |
| Energy Efficiency | Improves reactive power compensation and reduces losses. |
Applications in Electrical Systems
Self-healing shunt capacitors are versatile and widely applied in various electrical setups:
- Industrial Plants: To maintain stable power for machinery and reduce downtime.
- Commercial Buildings: Enhance power factor and lower electricity bills.
- Utilities: Improve grid stability and reduce reactive power penalties.
- Renewable Energy Systems: Support voltage control and reactive power management.
By choosing Geyue Electric capacitors, facilities benefit from high-quality design and long operational life.
Tips for Selecting the Right Capacitor
Selecting an appropriate self-healing shunt capacitor depends on multiple factors:
- Voltage Level: Ensure the capacitor is rated above the system voltage for safety.
- Capacitance Rating: Match the reactive power requirements of your network.
- Temperature Range: Choose capacitors that operate reliably under ambient conditions.
- Environmental Protection: Look for coatings or housings that prevent moisture and dust ingress.
- Manufacturer Reputation: Prefer brands like Geyue Electric with proven reliability and support.
Maintenance and Troubleshooting
Even self-healing capacitors require periodic inspection to ensure optimal performance:
- Visual Inspection: Check for signs of bulging, leakage, or corrosion.
- Electrical Testing: Measure capacitance and insulation resistance.
- System Monitoring: Track power factor and reactive power to identify underperforming units.
- Replacement Schedule: Follow manufacturer guidelines to replace aging capacitors.
Proper maintenance minimizes failures and maximizes the lifespan of Geyue Electric capacitors.
Frequently Asked Questions
- What makes a capacitor "self-healing"?
- It uses a metallized film dielectric that isolates faults automatically without interrupting operation.
- Can self-healing capacitors handle power surges?
- Yes, they are designed to withstand overvoltage events, though extreme conditions may require additional protection devices.
- How long do these capacitors typically last?
- With proper installation and maintenance, self-healing shunt capacitors can last 10–20 years, depending on environmental conditions.
- Why choose Geyue Electric capacitors?
- They combine reliable self-healing technology, energy efficiency, and extensive support for industrial and commercial applications.
For more information about self-healing shunt capacitors, visit Geyue Electric Product Page. Enhance your electrical system reliability today—contact us to find the perfect solution for your needs!
