Introduction to Box-Type Transformer Substation Maintenance

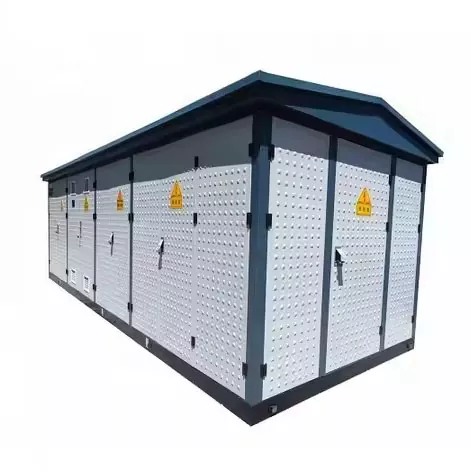

Box-Type Transformer Substations are compact, prefabricated power distribution units that combine transformers, switchgear, and control systems in a single enclosure. At Lugao Power, we engineer reliable box-type substations with advanced protection features, yet proper maintenance remains essential for optimal performance. This guide examines frequent operational challenges and professional maintenance solutions.
Common Box-Type Substation Issues & Solutions
1. Overheating Components
Causes:
-
Poor ventilation design
-
Dust accumulation on cooling fins
-
Overloading beyond rated capacity
Lugao Power Solutions:
✔ Temperature monitoring system (built-in sensors)
✔ Self-cleaning cooling vents (patented design)
✔ Load management software (optional IoT integration)
| Model | Max Temp Rise | Cooling Method | Overload Capacity |
|---|---|---|---|
| LG-BTS300 | 65°C | Forced air (IP54) | 110% for 2hrs |
| LG-BTS500 | 60°C | Oil-immersed (IP55) | 120% for 1hr |
2. Moisture Ingress
Prevention Measures:
-
Silica gel breathers (auto-regenerating)
-
Heating elements for humidity control
-
Cable gland sealing tests (annual checks)
3. Insulation Degradation
Maintenance Protocol:
-
Annual megger tests (minimum 100MΩ)
-
Infrared scans to detect hotspots
-
Partial discharge monitoring (online systems)
4. Circuit Breaker Failures
Critical Checks:
✔ Contact resistance (<25μΩ)
✔ Operating mechanism (lubrication schedule)
✔ Trip unit calibration (verify settings)
5. Corrosion & Structural Damage
Protection Methods:
-
Galvanized steel enclosures (150μm coating)
-
Stainless steel options for coastal areas
-
Anti-corrosion paint (5-year warranty)
Lugao Power Substation Technical Specifications
| Feature | LG-BTS300 | LG-BTS500 |
|---|---|---|
| Rated Voltage | 11kV/0.4kV | 33kV/0.4kV |
| Transformer | 315kVA Dry-type | 1000kVA Oil |
| Protection | IP54 | IP55 |
| Smart Features | Basic monitoring | Full SCADA |
| Maintenance Cycle | 2 years | 3 years |
Preventive Maintenance Checklist
Quarterly Inspections
-
Visual inspection of bushings/cables
-
Thermal imaging of connections
-
Oil testing (for oil-filled units)
Annual Procedures
-
Tightness check of all electrical joints
-
Relay testing & protection verification
-
Enclosure integrity assessment
FAQ: Box-Type Substation Maintenance
Q: How often should box-type substations be serviced?
A: Recommended intervals:
-
Basic inspection: Every 3 months (visual/thermal)
-
Comprehensive maintenance: Annually (electrical tests)
-
Oil analysis: Every 2 years (oil-filled units)
Lugao Power substations feature extended 5-year service intervals with our optional condition monitoring system.
