Portable Use 5kVA Silent Gasoline/Petrol Generator 5000W Lantop Design
Portable use 5Kva silent gasoline/petrol generator 5000w Lantop designgeneratorRating frequency(Hz)50605060506050605060Rating Voltage(V)110/120/220/230/240Rating power(KVA)1.51.822.52.83.655.566.5The Max.power(KVA)1.72.02.22.734.25.56.06.57.0Power factor(cos)1EngineType168F168F-1170F188F190FCategory......
Send Inquiry
Product Description

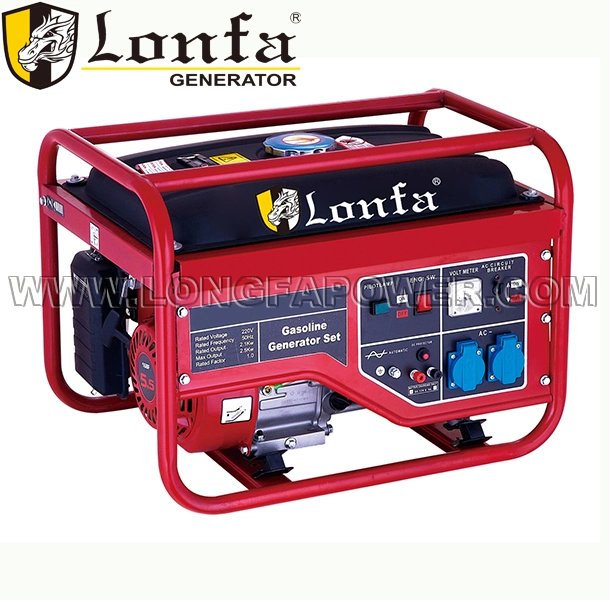

Portable use 5Kva silent gasoline/petrol generator 5000w Lantop design
| generator | Rating frequency(Hz) | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 |
| Rating Voltage(V) | 110/120/220/230/240 | ||||||||||
| Rating power(KVA) | 1.5 | 1.8 | 2 | 2.5 | 2.8 | 3.6 | 5 | 5.5 | 6 | 6.5 | |
| The Max.power(KVA) | 1.7 | 2.0 | 2.2 | 2.7 | 3 | 4.2 | 5.5 | 6.0 | 6.5 | 7.0 | |
| Power factor(cos) | 1 | ||||||||||
| Engine | Type | 168F | 168F-1 | 170F | 188F | 190F | |||||
| Category | Single crock,Force air-cooled four-stroke,top-intalled gasoline engine | ||||||||||
| Exclusion of cylinder(cm3) | 163 | 196 | 210 | 389 | 420 | ||||||
| The Max.output power(KW/rpm) | 4.1/3600(5.5HP) | 4.8/3600(6.5HP) | 5.1/3600(7.0HP) | 9.6/3600(13HP) | 11/3600(15HP) | ||||||
| Ignition system | Transistorized magneto | ||||||||||
| Start system | Recoil/E-start | ||||||||||
| Capacity of fuel tank(L) | 15 | 15 | 15 | 25 | 25 | ||||||
| Consumption of fuel(L/h) | 1.02 | 1.32 | 1.38 | 2.7 | 2.95 | ||||||
| Consecutive Working(h) | 13 | 13 | 13 | 9 | 8 | ||||||
| Noise(at7m)(dB) | 65 | 65 | 69 | 74 | 78 | ||||||
| Capacity of engine oil | 0.6 1.1 | ||||||||||
| Dimension | Set dimension(mm3) | 605×435×445 | 605×435×445 | 605×435×445 | 670*510*510 | 670×510×510 | |||||
| Net weight(kg) | 37.5 | 39 | 42 | 80 | 85 | ||||||
| 20GP/40HQ | 240/580 | 240/580 | 240/580 | 144/288 | 144/288 | ||||||
| Standard Equipment | Large capacity fuel tank,large capacity muffler,fuel gauge,voltmeter,AVR,oil alert,Ac circuit breaker | ||||||||||
| Purchasing | Four-wheel dolly kit | Yes | |||||||||
1.Q:What is the Quality Warranty for the products?
A:We offer 1 year quality warranty for all of our products.
2.Q:Where is your factory located? How can I visit there?
A: Our factory is located in Taizhou City, Zhejiang Province, China, about 2 hours train from Shanghai . All our clients, from home or abroad, are warmly welcome to visit us!
3.Q:What is the material of your products?
A: Only New material can be used for our products.
Materials for Generator: 100% Pure Crankcase, 100% Pure Copper Wire
Materials for Water Pump: 100% Pure Auminium Pump body and Crankcase
4.Q:What is Minimum Order quantity?
A: MOQ 50/100 pieces for different products.
You are welcomed to consult for details.

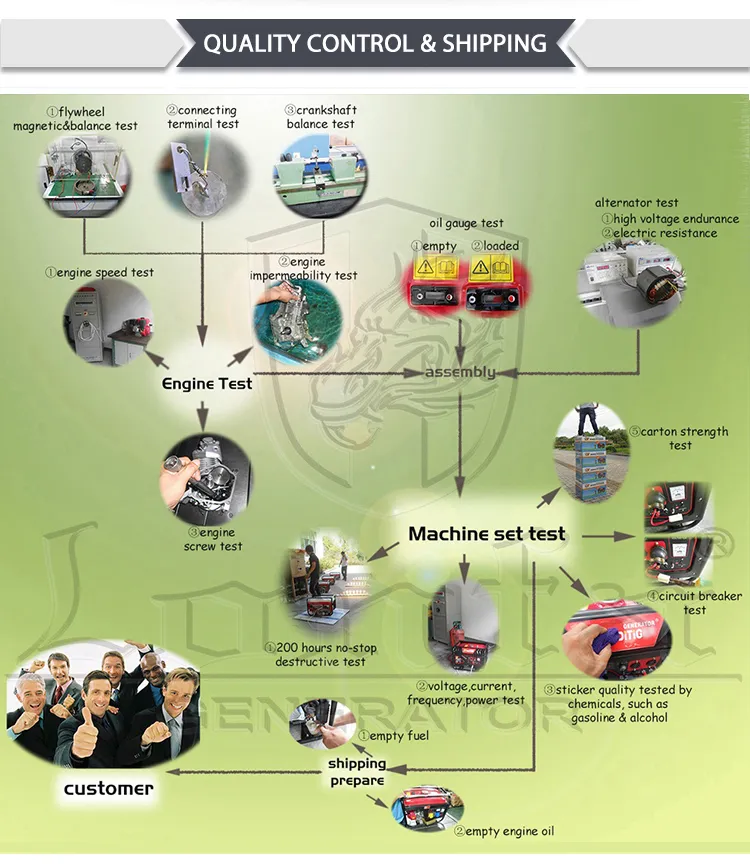

5.Q:How does your factory do regarding quality control?
A: From the internal parts to the outside packing, we not only make standard quality test,but also think ahead for a better solution. Except company QC system, We have achieved CE & SONCAP certificate.
