5500W 5000 Watt 5500 Watt Generator Portable Power Generator
The C.A.G TS series Gasoline Portable Generator TS5500/E is powered by a reliable single cylinder, OHV air cooled 4-cycle, 11HP petrol engine. The OHV engine is equipped with a low oil shutdown system that protects the engine from costly damage. This unit has a square tube design, with dual folding ......
Send Inquiry
Product Description

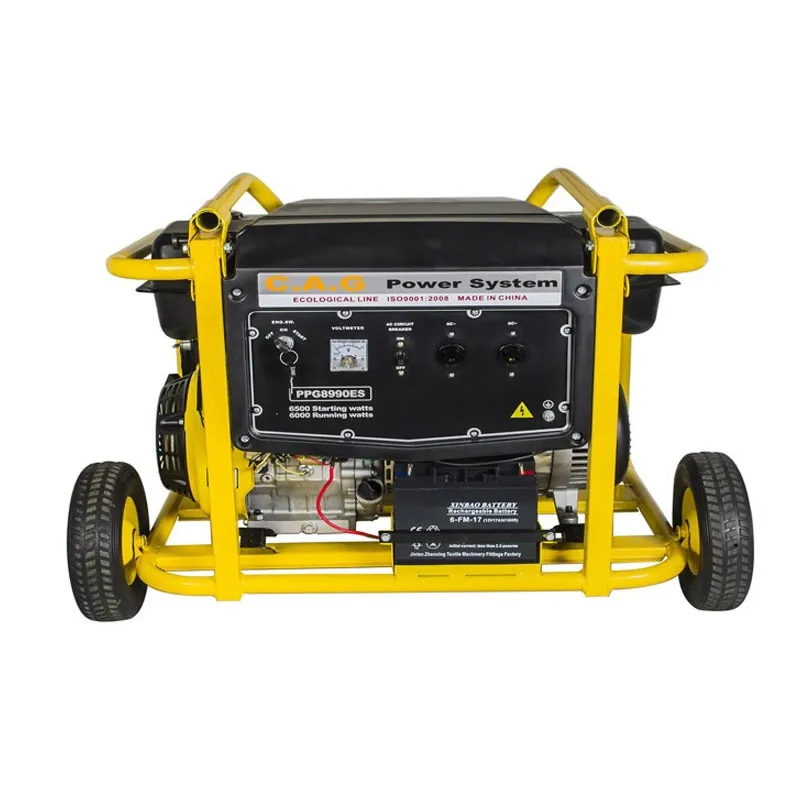

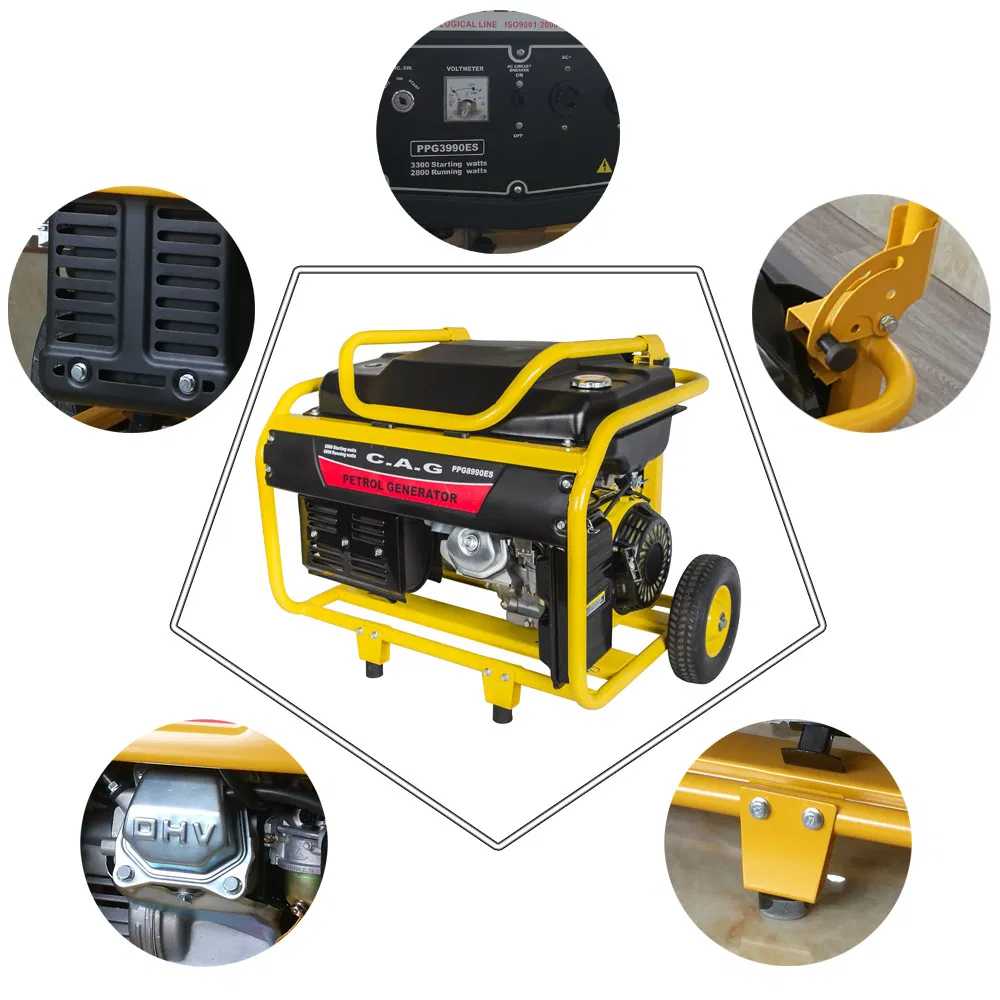

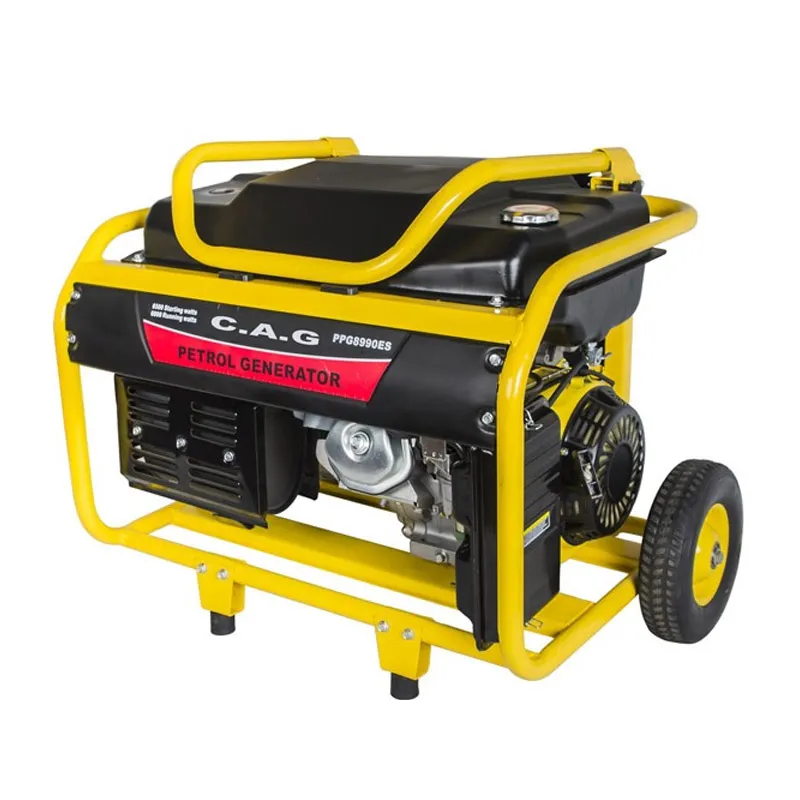

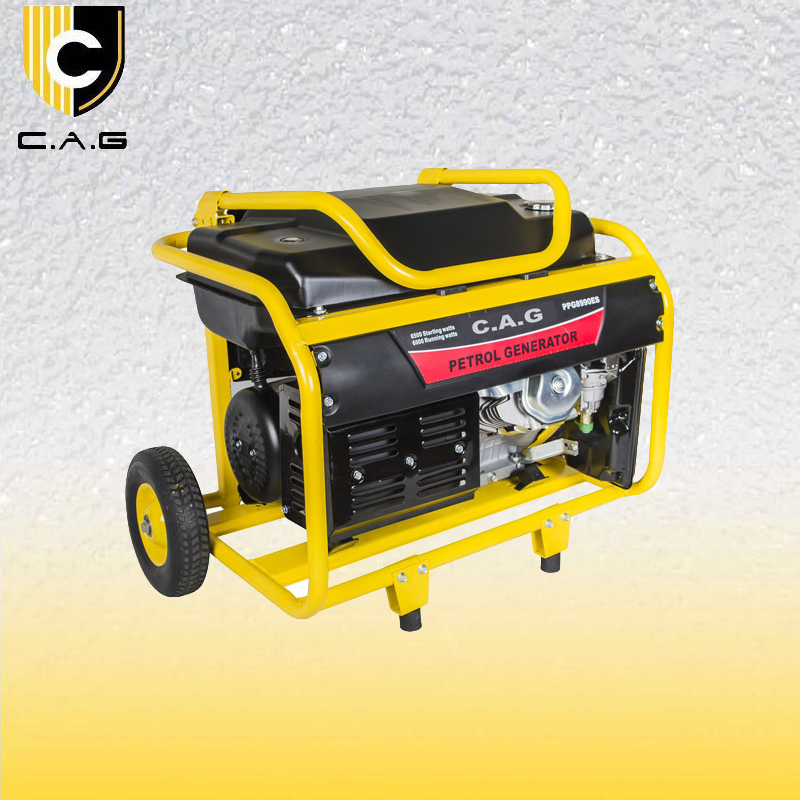

The C.A.G TS series Gasoline Portable Generator TS5500/E is powered by a reliable single cylinder, OHV air cooled 4-cycle, 11HP petrol engine. The OHV engine is equipped with a low oil shutdown system that protects the engine from costly damage. This unit has a square tube design, with dual folding handles and 10-inch never-flat wheels for balanced carrying. This gasoline portable generator provides reliable, clean, and instant power, and is ideal for emergencies, large RV's, power tools, trailers, bigger homes, or construction sites.
Small Gasoline Generator
| Data for CAG Gasoline Generator | |
| Model | TS5500/E |
| Type | Brush |
| Voltage Regulate | AVR |
| Frequency Hz | 50 | 60 |
| Rated AC Voltage (V) | 230V | 120V-240V |
| Rated AC Output (KVA) | 4.0 | 5.0 |
| Peak AC Output (KVA) | 4.5 | 5.5 |
| Power Factor COSφ | 1 |
| Model | TE340 |
| Type | OHV,4-stroke, single cylinder,Air-cooled |
| Bore x Stroke (mm) | 82×64 |
| Displacement (ml) | 337 |
| Max. output (HP/rpm) | 11.0/3600 |
| Fuel Type | Unleaded Gasoline |
| Fuel Tank Capacity (L) | 25L |
| Continuous Operating 1/2 load (h) | 10 |
| Engine Oil Standard | SF or Higher Grade |
| Oil Capacity (L/gal) | 1.1/0.29 |
| Ignition system | T.C.I. |
| Starting System | Recoil and hand-operated /Electric start |
| Operating Noise Level (7m) dB(A) | 72 |
| Dimensions L×W×H (mm) | 700x540x580 / 700*540*630(Handle Design ) |
| Net /Gross Weight (kg) | 70/72(83) |
| 20/40FT unit | 136 (102) / 272 (216) |
• Equipped with excellent CAG gasoline engine
• 10% more efficiency,less noise and better emission
• User-friendly professional control panel
• Optional low-oil shutdown protects the generator
• Full tubular-frame protection with vibration-damping mounts
• Optional wheel-kit for easy transport
• Optional AVR and ATS available
• EU, US , AU and other receptacle for choice.
• Self-start and remoter start as an optional.
• Optional Copper/ Aluminium Alternator
• Optional Single-Phase or three phase
• Optional EMC,DC,Digital display counter
